1331 Aluminum Square Tubular Handles
Home
/
Products
/
1.General Handles
/ Aluminum Square Tubular Handles
1331

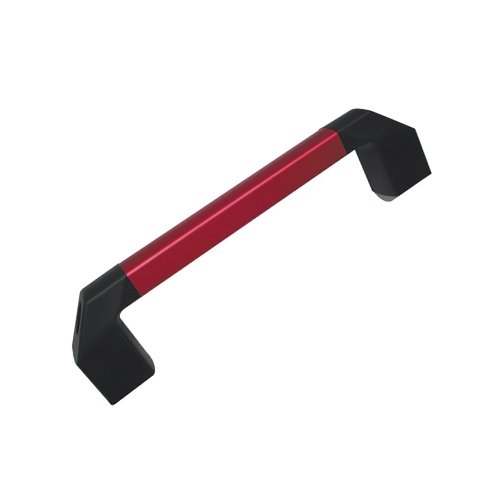

Aluminum Square Tubular Handles
Inquiry
BACK TO LIST
Print
Download 3D File
1331-180
1331-200
1331-250
1331-300
1331-350
1331-400
1331-500
1331-600
1331-700
Product Specification
Name
Material
Surfaced process
Square tube
Aluminum(AL)
Anodized
Natural (AN)
Black(ABK)
Red(ARD)
Orange(AOR)
Blue(ABL)
Yellow(AYE)
Seat
(KT)
Black(BK)
Steel screw
Steel (ST)
sSilver

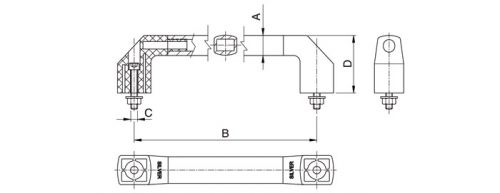

(mm)
Order No.
Aluminum(AL)
A
B
C
D
1331-180
24 x 27
180
M8
69
-200
24 x 27
200
M8
69
-250
24 x 27
250
M8
69
-300
24 x 27
300
M8
69
-350
24 x 27
350
M8
69
-400
24 x 27
400
M8
69
-500
24 x 27
500
M8
69
-600
24 x 27
600
M8
69
-700
24 x 27
700
M8
69
