4041 Adjustable Hand Levers

Home / Products / 4.Adjustable Handles / Adjustable Hand Levers
4041
Adjustable Hand Levers
Product Specification



Name Material Surfaced process
Handle  Precision steel (ST) Panted black (BK)
Panted orange (OR)
Panted silver (SR)
Spindle  Steel (ST) Dyed black (DB)



       (mm)
Order No.
(ST)

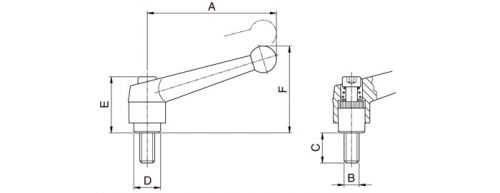

A B C D E F
4041-A-B-C-Surfaced color

*A(Handle length)

   B(Internal thread)

  C(Thread length)
63 M8 10 20 30 - - - 13.5 31 45
63 M10 10 20 30 40 50 - 13.5 31 45
78 M8 10 20 30 40 50 - 16 36 55
78 M10 10 20 30 40 50 - 16 36 55
78 M12 10 20 30 40 50 - 16 36 55
92 M10 - 20 30 40 50 60 19 43 65
92 M12 - 20 30 40 50 60 19 43 65
