4120 Flat Adjustable Tension Levers

Home / Products / 4.Adjustable Handles / Flat Adjustable Tension Levers
4120

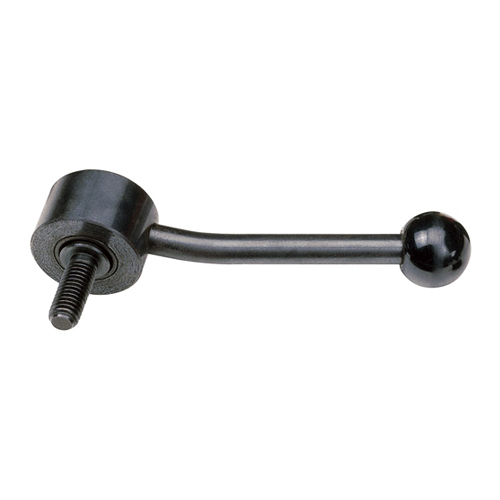

Flat Adjustable Tension Levers
Product Specification
Name Material Surfaced process
Handle  Steel (ST) Matt black (EBK)
Knob Bakelite (KU) Black (BK)
Cap Aluminum (AL) Matt silver (EL)
Spindle  Steel (ST) Black (BK)



       (mm)
Order No.

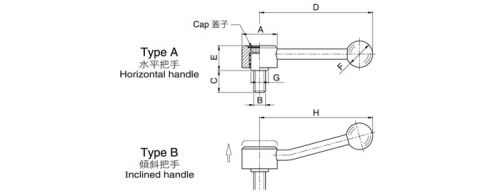

Type A
Order No.
Type B
A B C D E F G H
4120-A-B-C

 *A(Outside diameter)

  B(External thread)

 C(Thread length)
4121-A-B-C

 *A(Outside diameter)

  B(External thread)

 C(Thread length)
32 M8 16 20 25 32 40 100 20.5 22 13.4 99
32 M10   20 25 32 40 100 20.5 22 13.4 99
36 M10 10 20 30 40 50 120 24.5 27 16 119
36 M12 10 20 30 40 50 120 24.5 27 16 119
40 M10 20 25 30 40 50 130 26.5 34 19 129
40 M12 20 25 30 40 50 130 26.5 34 19 129
45 M12 30 40 50 60 70 145 33.5 34 23 144
45 M16 40 50 60 70 80 145 33.5 34 23 144
