9170 Steel Aseismatic Seats

Home / Products / 9.Clamping Accessories / Steel Aseismatic Seats
9170
Steel Aseismatic Seats
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Seat Steel (ST) Black (BK)
Screw Steel (ST)
Skidproof Rubber



       (mm)
Order No.

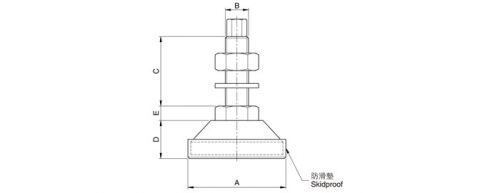

(ST)		 A B C D E Loading (kg)
9170-100-M16-75 100 M16 43 38 10 800
        -100-M16-110 100 M16 78 38 10 800
        -100-M16-150 100 M16 118 38 10 800
        -100-M16-200 100 M16 168 38 10 800
