8010 Plastic Knurled Thumb Screws

Home / Products / 8.Knurled Nuts / Plastic Knurled Thumb Screws
8010

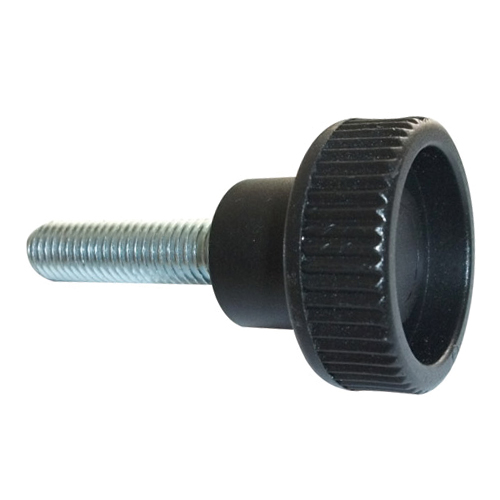

Plastic Knurled Thumb Screws
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Knob Plastic (KT) Black (BK)
Spindle steel (ST) Zinced (ZI)



       (mm)
Order No.

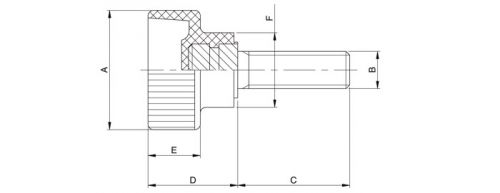

(KT)		 A B C D E F
8010-A-B-C

*A(Knob diameter)

   B(External thread)

  C(Thread length)		 20 M4 10 15 20 13 8 12
20 M5 10 15 20 13 8 12
25 M6 10 20 30 19 9 15
30 M8 20 30 40 21 11 18
35 M10 20 30 40 28 13 21
