6080 Star Knobs

Home / Products / 6.Hand Knobs / Star Knobs
6080
Star Knobs
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Knob Cast iron (GG) Matt silver (EL)



       (mm)

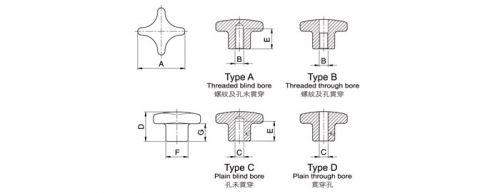

Order No. A B C D E F G
Type A Type B Type C Type D
6080-32-M6 6081-32-M6 6082-32-M6 6083-32-M6 32 M6 B6 21 12 12 10
       -40-M8        -40-M8        -40-M8        -40-M8 40 M8 B8 26 15 14 14
       -50-M10        -50-M10        -50-M10        -50-M10 50 M10 B10 34 18 18 20
       -63-M12        -63-M12        -63-M12        -63-M12 63 M12 B12 42 22 20 25
       -80-M16        -80-M16        -80-M16        -80-M16 80 M16 B16 52 28 25 30
         -100-M20          -100-M20          -100-M20          -100-M20 100 M20 B20 65 36 32 38
